The quality manager as CE coordinator

Don't miss out on any news and changes relating to CE! Register now for the CE InfoService

Synergies and challenges in the integration of quality management and CE marking


Share Article
Share Button Linkedin Share Button Xing Share Button X Share Button Email

In an increasingly regulated world, companies not only have to develop high-quality products, but also ensure that these products meet the relevant legal requirements. CE marking plays a central role in the European Union to ensure compliance with safety and health standards. In many companies, the quality manager, traditionally responsible for ensuring product and process quality, is increasingly taking on the role of product compliance officer, often with the title of ‘CE coordinator’ in industry, often with a focus on the European market.

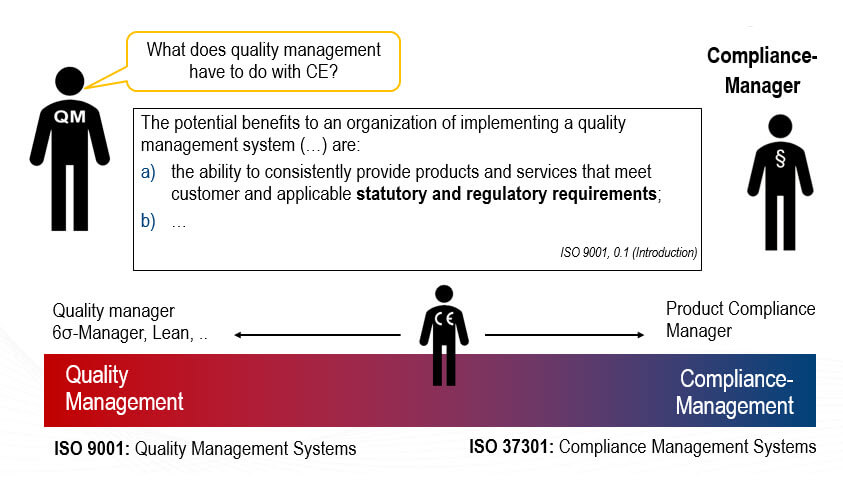

Figure 1: Relationships between CE and QM systems1

Quality management and CE marking

The aim of quality management systems, in particular those based on ISO 9001, is to improve a company's overall performance through continuous process improvement. These systems are able to ensure consistent fulfilment of customer requirements while also monitoring compliance with legal requirements. In the context of CE marking, the use of a QMS is particularly valuable because it provides a structured approach to conformity assessment and risk assessment. The quality manager is thus faced with the task of applying the principles of quality management to the specific requirements of CE marking, thereby bridging the gap between product quality and product safety.

Speaking of management systems and standards: ISO 37301 provides a framework for compliance management that goes beyond mere product conformity, for example, to include the acceptance of gifts, bribery, etc. In many organisations, compliance management and quality management are considered separately, although the two systems have considerable overlap, as a comparison of ISO 37301 and ISO 9001 also shows. Since this technical article is about product compliance, we will only mention ISO 37301 in passing. An integrated approach, in which the quality manager also acts as the compliance manager, can exploit synergies by ensuring that all requirements – from product safety to compliance with environmental standards – are systematically met.

Process approach in QMS and CE-processes

The process approach, as described in ISO 9001, focuses on understanding and controlling processes to increase an organisation's efficiency and effectiveness. This approach requires the identification and management of processes that directly or indirectly affect the organisation's ability to deliver compliant products. Whereby, in the context of ISO 9001, ‘compliant’ is to be understood both as compliant with the performance and quality expectations of customers and as compliant with regulatory requirements, such as the new EU Machinery Regulation. In the context of CE marking, this means that all relevant processes – from product development to production to market launch – must be systematically checked and optimised with regard to their conformity with CE requirements.

EN ISO 12100 is the international standard for risk assessment of machinery and lays out a systematic process for identifying hazards, evaluating the risks and determining risk reduction measures. For quality managers who also serve as CE coordinators, it is crucial not only to understand this process but also to integrate it into the overall product development process. This requires close co-operation with the design engineers and the technical department to ensure that all aspects of machine safety are considered from the outset.

The CE coordinator should therefore be involved in the product development process at an early stage to ensure that all relevant safety requirements are taken into account during the design phase. This includes defining the machine's limits of use, identifying possible hazards and developing safety-related functions. By closely integrating quality management and CE coordination, errors in the early development phase can be avoided that would later lead to costly rework.

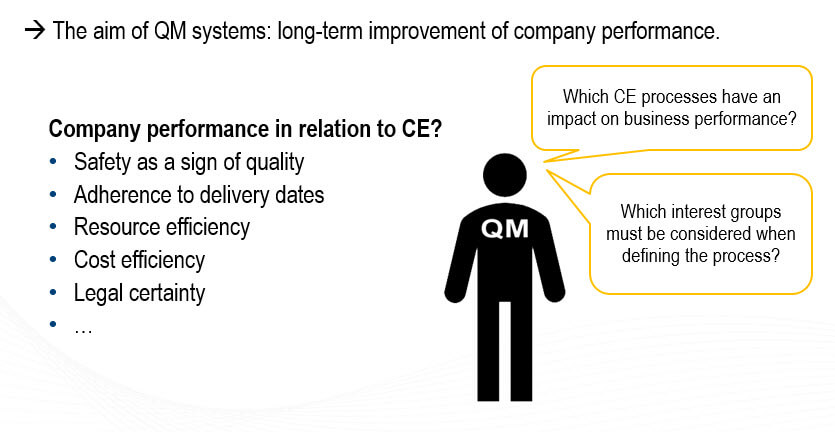

Figure 2: Company performance in relation to CE1

Lean management as a tool for increasing efficiency in CE processes

The goal of avoiding waste (Japanese: Muda) and maximising value creation means that all processes that do not directly add value to the final product must be critically scrutinised and, if necessary, eliminated. In the CE context, these can be redundant testing, duplicative documentation or unnecessary administrative tasks. By applying lean principles to CE processes, the quality manager can ensure that these processes remain lean and efficient while also meeting all regulatory requirements. A common example of Muda in practice is the inability to find knowledge regarding safety solutions from old projects. Not every project is completely new; in almost every project, there are some aspects where proven solutions can be drawn upon. If this knowledge cannot be found, however, avoidable additional costs and inefficiencies arise.

To pick up on a second Japanese term alongside Muda, ‘Saiton’ should be mentioned. This term, which is familiar from production optimisation (from the 5S scheme), suggests that all the necessary tools should always be to hand. In safety-related design, harmonised standards often serve as tools. For example, process effectiveness can be increased at this point if designers are given easy access to the current and relevant standards. However, people in technical implementation are often confronted with the fact that, on the one hand, there is only very limited knowledge regarding the work with standards and, on the other hand, there are no tools and processes in place for how to use the right standard in a targeted manner. Due to the cumbersome nature of the process, more and more loops with internal or external experts are then required, which in turn can be named as a waste of valuable resources (Muda) in the CE context.

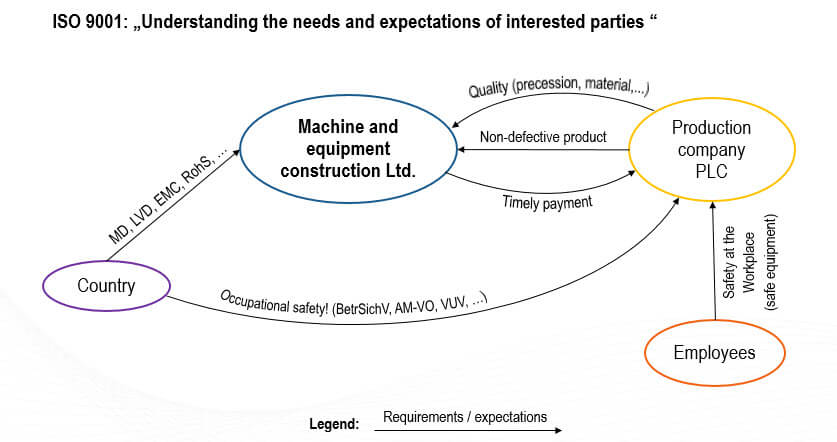

Figure 3: Stakeholder management1

Stakeholder management and compliance in the CE process

According to ISO 9001 and ISO 37301, the requirements and expectations of interested parties, such as customers, employees, suppliers and state authorities, must be systematically identified and integrated into the processes. For the CE coordinator, this means ensuring that all stakeholders – from internal departments to external partners – are included in the CE marking process. This includes clearly communicating requirements, monitoring compliance and regularly reviewing processes to ensure that all parties involved understand and fulfil their role in the CE process. In particular, this begins with the first contact between a customer and the technical sales department. Due to a lack of processes, sales engineers sometimes make offers that do not adequately take into account product compliance costs, or they overestimate them. In the first case, the consequence may be a lower margin or, in the worst case, even a negative margin. In the second case, the order is not placed. In most cases, the realistic consideration of compliance costs is not a problem of know-how in the company, but is based on non-existent or non-existent processes that also integrate the technically responsible department for compliance costs in the offer phase.

The successful implementation of CE processes depends to a large extent on the commitment of the company management. Without clear support from management, the CE coordinator will be unable to adequately fulfil their tasks. Good governance, as described in ISO 37301, requires that the compliance function can operate independently within the organisation and has direct access to senior management. This ensures that all necessary resources are provided and that the CE coordinator has the authority to carry out their duties effectively. In practice, organisational structures that are fully compliant with the recommendations of ISO 37301 (and also ISO 9001) are emerging, in which CE coordinators have the backing of the relevant managers and can thus ensure a consistent and effective process landscape.

Unfortunately, however, there are still companies where product compliance officers are seen as pure cost factors. This is unfortunate in that field reports show that safety technology can be used to generate considerable sales. This is the case, for example, when customers want more than is required by law. Thanks to their precise knowledge of the legal requirements and the associated billable additional services, plant engineering companies report significant sales increases in the double-digit percentage range for each unit sold.

Seminar tip

Efficient CE marking and risk assessment of machines


Our 2-day seminar Efficient CE marking and risk assessment of machinery and plants deals with requirements for safe design of machinery – and covers both the Machinery Directive 2006/42/EC and the new Machinery Regulation (EU) 2023/1230.

Technical tools for optimising CE processes

Modern software solutions such as Safexpert offer CE coordinators a variety of functions that optimise the CE process. Safexpert enables efficient management of standards, performance of risk assessments and documentation of all necessary steps for CE marking.

The use of templates and automated testing processes can save time and resources while supporting compliance with all legal requirements. Safexpert also offers interfaces to other tools, such as Sistema, which enables the evaluation of Performance Levels (PL).

A major advantage of using software solutions such as Safexpert lies in the possibility of automating routine work and standardising processes. This applies in particular to the management and updating of standards, the performance of tests and the creation of technical documentation. Standardised checklists and templates ensure that all necessary steps are carried out correctly and efficiently, while automated up-to-dateness checks ensure that the standards used are always at hand and up to date.

The digitalisation of risk assessments and technical documentation brings significant advantages in terms of the traceability and accessibility of information. CE coordinators can use digital systems such as Safexpert to ensure that all relevant data is stored centrally and easily accessible when needed. This not only facilitates internal communication, but also ensures that all necessary evidence can be quickly and completely presented in the event of an audit by external bodies.


Conclusion

The integration of quality management and CE marking offers companies the opportunity not only to efficiently ensure compliance with legal requirements, but also to increase the overall quality and safety of their products. Quality managers who recognise and exploit these synergies make a significant contribution to sustainably improving corporate performance. By using proven methods from quality management and applying modern software solutions such as Safexpert, CE processes can be optimised while simultaneously increasing legal certainty and efficiency.


Posted on: 2025-05-23 (last amendment)

Author

Johannes Windeler-Frick, MSc ETH
Member of the IBF management board. Specialist in CE marking and Safexpert. Presentations, podcasts and publications on various CE topics, in particular CE organisation and efficient CE management. Management of the further development of the Safexpert software system. Degree in electrical engineering from ETH Zurich (MSc) with a focus on energy technology and specialisation in the field of machine tools.

Email: johannes.windeler-frick@ibf-solutions.com | www.ibf-solutions.com



Daniel Magnus, BSc
Head of Marketing at IBF. Degree in Business Sciences from the SoWi Innsbruck. Over 10 years of experience in the B2B sector, with a focus on mechanical and automotive engineering, electronics development/production and software development.

E-mail: daniel.magnus@ibf-solutions.com | www.ibf-solutions.com
